Output.h File Reference

#include <stdio.h>
#include <stdlib.h>
#include "../Utils/Updateable.h"

Include dependency graph for Output.h:

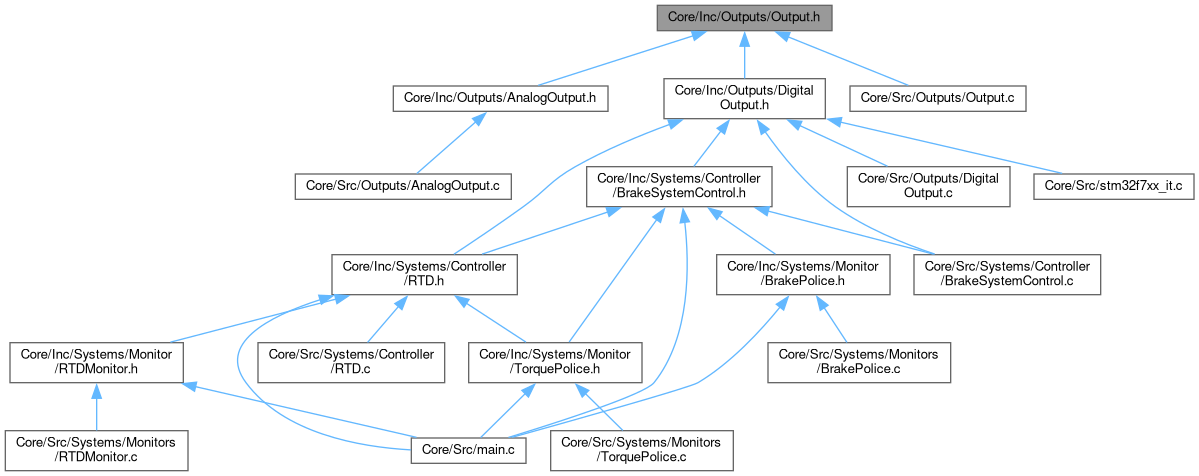

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Output

Enumerations
enum	OutputType { o_ANALOG , o_DIGITAL }

Functions
void	initOutput (Output *output, const char *name, int hz, OutputType type)
	Initializes an output with the given parameters. More...

Enumeration Type Documentation

OutputType

enum OutputType

Enumerator
o_ANALOG
o_DIGITAL

Definition at line 9 of file Output.h.

             {
    o_ANALOG,
    o_DIGITAL,
} OutputType;

Function Documentation

initOutput()

void initOutput	(	Output *	output,
		const char *	name,
		int	hz,
		OutputType	type
	)

Initializes an output with the given parameters.

Parameters

output	Pointer to the Output structure to initialize.
name	Pointer to a string containing the name of the output.
hz	The frequency in Hertz at which the output operates.
type	The type of the output as defined by the SensorType enum.

Definition at line 4 of file Output.c.

                                                                           {
    initUpdateable(&output->updateable, name, hz, OUTPUT, output);
    output->type = type;
}

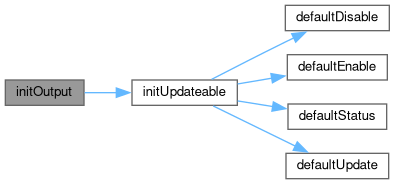

Here is the call graph for this function:

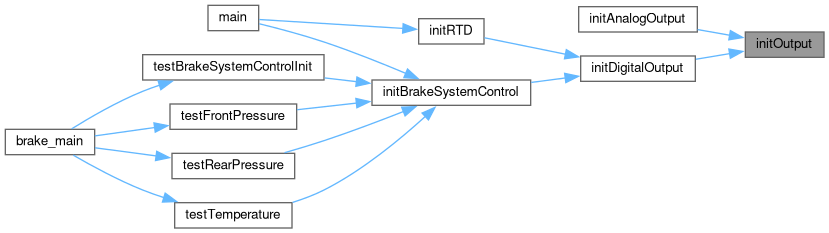

Here is the caller graph for this function:
