BrakeSystemControlTest.c File Reference

#include "../Inc/Systems/Controller/BrakeSystemControl.h"

Include dependency graph for BrakeSystemControlTest.c:

Go to the source code of this file.

Functions
int	testBrakeSystemControlInit (int maxTemp, int brakeLightActivationPoint, int heavyBrakingActivationPoint, const char *testName)
int	testFrontPressure (int maxTemp, int brakeLightActivationPoint, int heavyBrakingActivationPoint, float pressure, BrakeSystemStatus desiredStatus, const char *testName)
int	testRearPressure (int maxTemp, int brakeLightActivationPoint, int heavyBrakingActivationPoint, float pressure, BrakeSystemStatus desiredStatus, const char *testName)
int	testTemperature (int maxTemp, int brakeLightActivationPoint, int heavyBrakingActivationPoint, float temperature, BrakeSystemStatus desiredStatus, const char *testName)
int	brake_main ()

Function Documentation

brake_main()

int brake_main

(

)

Definition at line 66 of file BrakeSystemControlTest.c.

                {
    int tests_failed = 0;

    tests_failed += testBrakeSystemControlInit(0, 0, 0, "Initialization Test");
    tests_failed += testFrontPressure(0, 0, 0, -1.0, PRESSURE_UNDER_LIMIT, "Front Pressure Below Limit Test");
    tests_failed += testFrontPressure(0, 0, 0, 2001.0, PRESSURE_OVER_LIMIT, "Front Pressure Above Limit Test");
    tests_failed += testFrontPressure(0, 0, 0, 1234.0, BRAKES_OK, "Front Pressure Within Limits Test");
    tests_failed += testRearPressure(0, 0, 0, -1.0, PRESSURE_UNDER_LIMIT, "Rear Pressure Below Limit Test");
    tests_failed += testRearPressure(0, 0, 0, 2001.0, PRESSURE_OVER_LIMIT, "Rear Pressure Above Limit Test");
    tests_failed += testRearPressure(0, 0, 0, 1234.0, BRAKES_OK, "Rear Pressure Within Limits Test");
    tests_failed += testTemperature(1000, 0, 0, 1001.0, TEMPERATURE_OVER_LIMIT, "Temperature Above Limit Test");
    tests_failed += testTemperature(1000, 0, 0, 123.0, BRAKES_OK, "Temperature Within Limit Test");
    tests_failed += testTemperature(1000, 0, 0, -1.0, TEMPERATURE_SENSOR_ERROR, "Temperature Negative Test");

    if (tests_failed == 0) {
        printf("All tests passed.\n");
    } else {
        printf("Some tests failed.\n");
    }

    return tests_failed;
}

Here is the call graph for this function:

testBrakeSystemControlInit()

int testBrakeSystemControlInit	(	int	maxTemp,
		int	brakeLightActivationPoint,
		int	heavyBrakingActivationPoint,
		const char *	testName
	)

Definition at line 3 of file BrakeSystemControlTest.c.

                                                                                                                                 {
    BrakeSystemControl bsc;
    initBrakeSystemControl(&bsc, 0, maxTemp, brakeLightActivationPoint, heavyBrakingActivationPoint, 0, 1, 2);

    if (bsc.status != BRAKES_OK){
        printf("%s Failed: Initial status is not OK.\n", testName);
        return 1;
    }
    else{
        printf("%s Failed: Initial status is OK.\n", testName);
        return 0;
    }
}

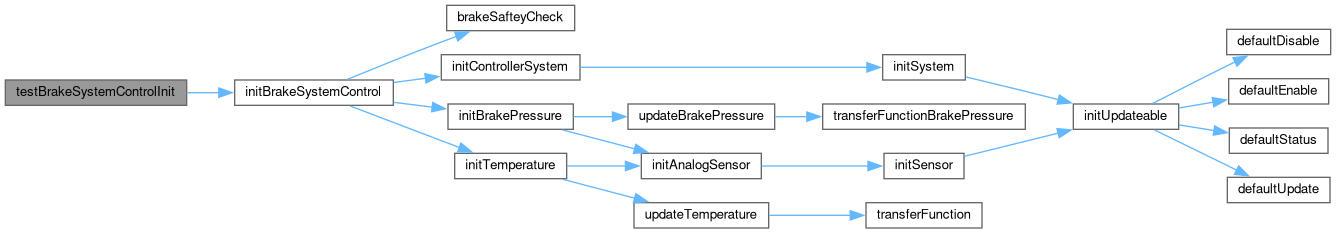

Here is the call graph for this function:

Here is the caller graph for this function:

testFrontPressure()

int testFrontPressure	(	int	maxTemp,
		int	brakeLightActivationPoint,
		int	heavyBrakingActivationPoint,
		float	pressure,
		BrakeSystemStatus	desiredStatus,
		const char *	testName
	)

Definition at line 17 of file BrakeSystemControlTest.c.

                                                                                                                                                                         {
    BrakeSystemControl bsc;
    initBrakeSystemControl(&bsc, 0, maxTemp, brakeLightActivationPoint, heavyBrakingActivationPoint, 0, 1, 2);
    setFrontPressure(&bsc, pressure);

    BrakeSystemStatus status = checkSensorLimits(&bsc);
    if (status != desiredStatus){
        printf("%s Failed: Status after update is incorrect, actual status: %d.\n", testName, status);
        return 1;
    }
    else{
        printf("%s Passed: Status after update is correct.\n", testName);
        return 0;
    }
}

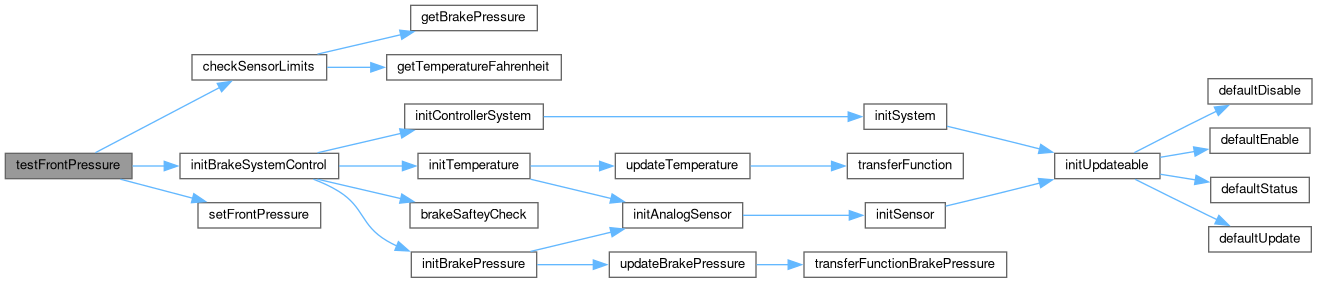

Here is the call graph for this function:

Here is the caller graph for this function:

testRearPressure()

int testRearPressure	(	int	maxTemp,
		int	brakeLightActivationPoint,
		int	heavyBrakingActivationPoint,
		float	pressure,
		BrakeSystemStatus	desiredStatus,
		const char *	testName
	)

Definition at line 33 of file BrakeSystemControlTest.c.

                                                                                                                                                                        {
    BrakeSystemControl bsc;
    initBrakeSystemControl(&bsc, 0, maxTemp, brakeLightActivationPoint, heavyBrakingActivationPoint, 0, 1, 2);
    setRearPressure(&bsc, pressure);

    BrakeSystemStatus status = checkSensorLimits(&bsc);
    if (status != desiredStatus){
        printf("%s Failed: Status after update is incorrect, actual status: %d.\n", testName, status);
        return 1;
    }
    else{
        printf("%s Passed: Status after update is correct.\n", testName);
        return 0;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

testTemperature()

int testTemperature	(	int	maxTemp,
		int	brakeLightActivationPoint,
		int	heavyBrakingActivationPoint,
		float	temperature,
		BrakeSystemStatus	desiredStatus,
		const char *	testName
	)

Definition at line 49 of file BrakeSystemControlTest.c.

                                                                                                                                                                          {
    BrakeSystemControl bsc;
    initBrakeSystemControl(&bsc, 0, maxTemp, brakeLightActivationPoint, heavyBrakingActivationPoint, 0, 1, 2);
    setTemperature(&bsc, temperature);

    BrakeSystemStatus status = checkSensorLimits(&bsc);
    if (status != desiredStatus){
        printf("%s Failed: Status after update is incorrect, actual status: %d.\n", testName, status);
        return 1;
    }
    else{
        printf("%s Passed: Status after update is correct.\n", testName);
        return 0;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:
