Accelerometer.h File Reference

#include "../AnalogSensor.h"

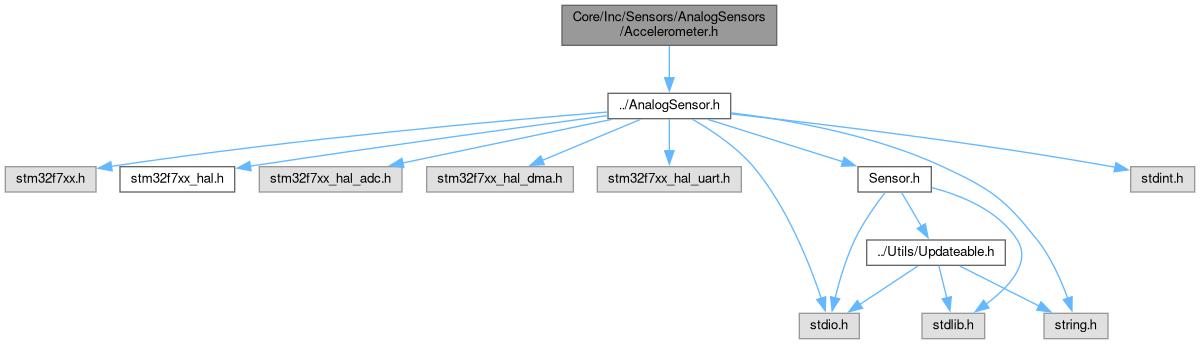

Include dependency graph for Accelerometer.h:

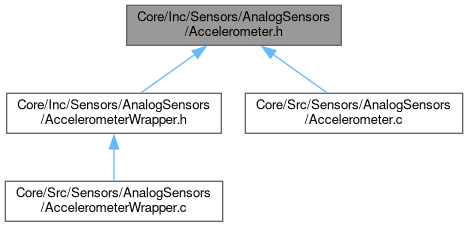

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	Accelerometer

Functions
void	initAccelerometer (Accelerometer *accel, int channel, int hz, int muxChannel)
	Initializes the accelerometer with the given channel, frequency, and multiplexer channel. More...
float	getAccelerometerValue (Accelerometer *accel)
	Gets the current value of the accelerometer. More...
void	updateAccelerometer (void *accel)
	Updates the accelerometer data. More...
float	transferFunctionAccelerometer (float rawVal)
	Converts raw accelerometer data to a meaningful value. More...

Function Documentation

getAccelerometerValue()

float getAccelerometerValue

(

Accelerometer *

accel

)

Gets the current value of the accelerometer.

Parameters

accel

Pointer to the Accelerometer structure to query.

Returns

The current accelerometer value.

Definition at line 14 of file Accelerometer.c.

                                                  {
    return accel->value;
}

initAccelerometer()

void initAccelerometer	(	Accelerometer *	accel,
		int	channel,
		int	hz,
		int	muxChannel
	)

Initializes the accelerometer with the given channel, frequency, and multiplexer channel.

Parameters

accel	Pointer to the Accelerometer structure to initialize.
channel	The analog channel the accelerometer is connected to.
hz	The frequency in Hertz at which the accelerometer operates.
muxChannel	The multiplexer channel for the accelerometer.

Definition at line 8 of file Accelerometer.c.

                                                                                  {
    initAnalogSensor(&accel->base, "Accelerometer", hz, channel, accel);
    accel->value = -1;
    accel->base.sensor.updateable.update = updateAccelerometer;
}

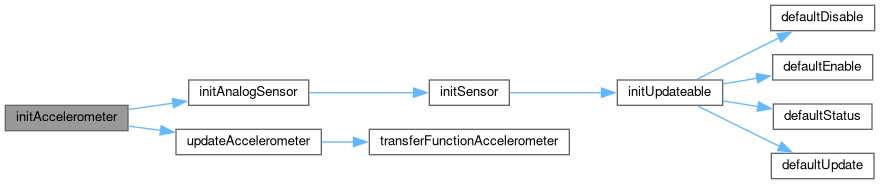

Here is the call graph for this function:

transferFunctionAccelerometer()

float transferFunctionAccelerometer

(

float

rawVal

)

Converts raw accelerometer data to a meaningful value.

Parameters

rawVal

The raw data from the accelerometer.

Returns

The converted accelerometer value.

Definition at line 25 of file Accelerometer.c.

                                                  {
    return (rawVal - kOffsetVolts) / kVoltsPerG;
}

Here is the caller graph for this function:

updateAccelerometer()

void updateAccelerometer

(

void *

accel

)

Updates the accelerometer data.

Parameters

accel

Pointer to the Accelerometer structure to update.

Definition at line 18 of file Accelerometer.c.

                                      {
    Accelerometer *myAccel = (Accelerometer *)accel;
    float rawData = 0.0f; // Placeholder for sensor reading
    printf("Updating Accelerometer\n");
    myAccel->value = transferFunctionAccelerometer(rawData);
}

Here is the call graph for this function:

Here is the caller graph for this function:
