BrakePressure.h File Reference

#include "../AnalogSensor.h"

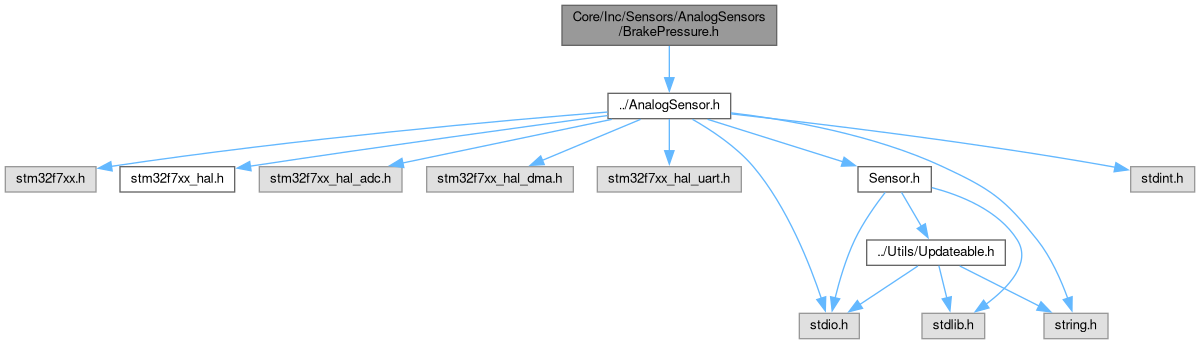

Include dependency graph for BrakePressure.h:

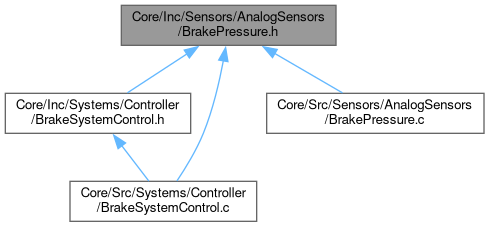

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	BrakePressure

Functions
void	initBrakePressure (BrakePressure *bp, int hz, int channel)
	Initializes the BrakePressure sensor with the given frequency and channel. More...
float	getBrakePressure (BrakePressure *bp)
	Gets the current brake pressure. More...
void	updateBrakePressure (void *bp)
	Updates the brake pressure data. More...
float	transferFunctionBrakePressure (float rawVal)
	Converts raw brake pressure data to a meaningful pressure value. More...

Function Documentation

getBrakePressure()

float getBrakePressure

(

BrakePressure *

bp

)

Gets the current brake pressure.

Parameters

bp	Pointer to the BrakePressure structure to query.

Returns

The current brake pressure.

Definition at line 17 of file BrakePressure.c.

                                          {
    return bp->pressure;
}

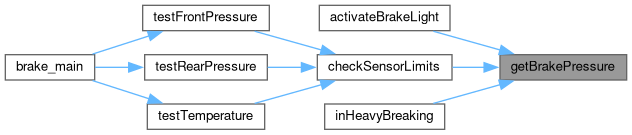

Here is the caller graph for this function:

initBrakePressure()

void initBrakePressure	(	BrakePressure *	bp,
		int	hz,
		int	channel
	)

Initializes the BrakePressure sensor with the given frequency and channel.

Parameters

bp	Pointer to the BrakePressure structure to initialize.
hz	The frequency in Hertz at which the sensor operates.
channel	The analog channel the sensor is connected to.

Definition at line 11 of file BrakePressure.c.

                                                               {
    initAnalogSensor(&bp->base, "BrakePressure", hz, channel, bp);
    bp->pressure = -1;
    bp->base.sensor.updateable.update = updateBrakePressure;
}

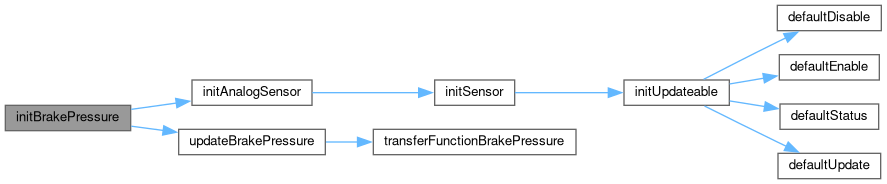

Here is the call graph for this function:

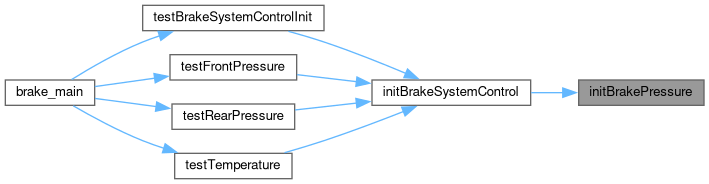

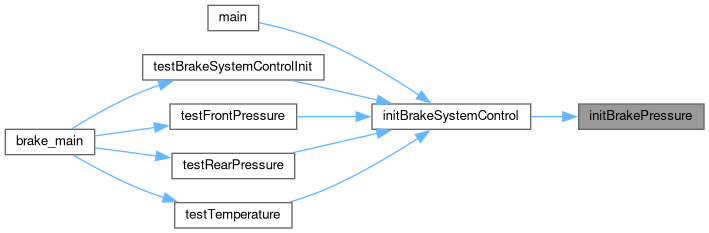

Here is the caller graph for this function:

transferFunctionBrakePressure()

float transferFunctionBrakePressure

(

float

rawVal

)

Converts raw brake pressure data to a meaningful pressure value.

Parameters

rawVal

The raw data from the brake pressure sensor.

Returns

The converted brake pressure value.

Definition at line 31 of file BrakePressure.c.

                                                  {
    if (rawVal < kLowOutputSaturation) {

        #ifdef DEBUGn
        printf("BrakePressure::transfer_function rawVal is too low\r\n");
        #endif

        return -1;
    }
    else if (rawVal > kHighOutputSaturation) {

        #ifdef DEBUGn
        printf("BrakePressure::transfer_function rawVal is too high\r\n");
        #endif

        return 2001;
    }
    else {
        return ((rawVal - kOffsetVoltage) / kVoltsPerPSIA);
    }
}

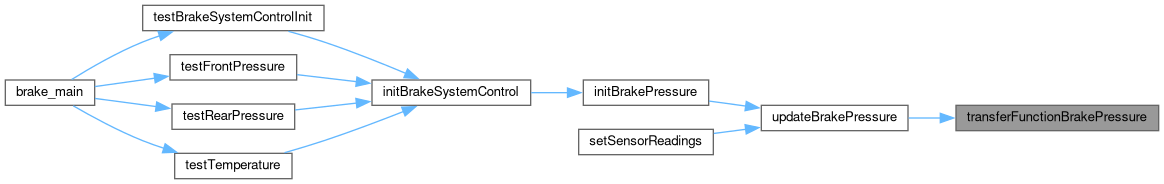

Here is the caller graph for this function:

updateBrakePressure()

void updateBrakePressure

(

void *

bp

)

Updates the brake pressure data.

Parameters

bp	Pointer to the BrakePressure structure to update.

Definition at line 21 of file BrakePressure.c.

                                   {
    BrakePressure *brakePressure = (BrakePressure *)bp;
    float rawData = getAnalogSensorData(&brakePressure->base);

    #ifdef DEBUGn
    printf("BrakePressure::update rawVal: %f\r\n", rawData);
    #endif
    brakePressure->pressure = transferFunctionBrakePressure(rawData);
}

Here is the call graph for this function:

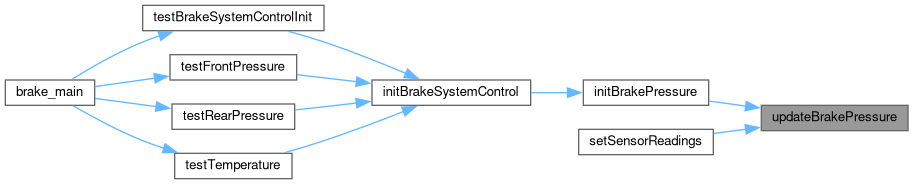

Here is the caller graph for this function:
