Telemetry.h File Reference

#include <stdint.h>
#include <stdbool.h>
#include "Units.h"

Include dependency graph for Telemetry.h:

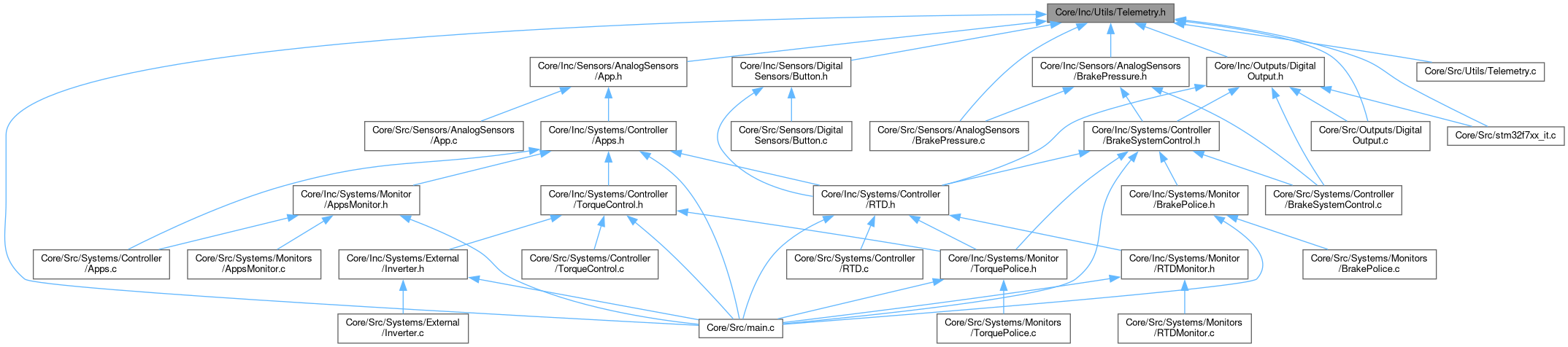

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	TelemetrySignal

Enumerations
enum	TelemetryType {   TELEMETRY_SENSOR , TELEMETRY_OUTPUT , TELEMETRY_CAN_TX , TELEMETRY_CAN_RX ,   TELEMETRY_STATUS , TELEMETRY_DEBUG }

Functions
void	initTelemetry (void)
TelemetrySignal *	registerTelemetrySignal (const char *name, TelemetryType type, UnitId unit_id, uint32_t expected_rate_ms, float custom_min, float custom_max)
void	sendTelemetryValue (TelemetrySignal *signal, float value)
void	sendCANTelemetryData (TelemetrySignal *signal, uint32_t can_id, uint8_t *data, uint8_t dlc)
void	sendTelemetryValueByName (const char *name, float value, TelemetryType type)
void	checkTelemetryHealth (void)
void	handleTelemetryConfigRequest (void)
const char *	getCategoryName (UnitCategory category)
const char *	getTypeName (TelemetryType type)

Enumeration Type Documentation

TelemetryType

enum TelemetryType

Enumerator
TELEMETRY_SENSOR
TELEMETRY_OUTPUT
TELEMETRY_CAN_TX
TELEMETRY_CAN_RX
TELEMETRY_STATUS
TELEMETRY_DEBUG

Definition at line 8 of file Telemetry.h.

             {
    TELEMETRY_SENSOR,     // Traditional sensor readings
    TELEMETRY_OUTPUT,     // Digital/analog outputs
    TELEMETRY_CAN_TX,     // CAN messages being sent
    TELEMETRY_CAN_RX,     // CAN messages being received
    TELEMETRY_STATUS,     // System status values
    TELEMETRY_DEBUG       // Debug/diagnostic values
} TelemetryType;

Function Documentation

checkTelemetryHealth()

void checkTelemetryHealth

(

void

)

Definition at line 111 of file Telemetry.c.

                                {
    uint32_t now = HAL_GetTick();

    for (uint16_t i = 0; i < num_signals; i++) {
        TelemetrySignal* sig = &signals[i];
        if (!sig->enabled) continue;

        uint32_t time_since_update = now - sig->last_update;
        uint32_t stale_threshold = sig->expected_rate_ms * 3;

        if (time_since_update > stale_threshold) {
            const UnitDefinition* unit = getUnitDefinition(sig->unit_id);
            sendMessage("TelemetryHealth", MSG_WARNING,
                       "Signal stale: %s (last update %dms ago, expected every %dms)",
                       sig->name, time_since_update, sig->expected_rate_ms);
        }
    }
}

Here is the call graph for this function:

getCategoryName()

const char * getCategoryName

(

UnitCategory

category

)

Definition at line 161 of file Telemetry.c.

                                                   {
    switch (category) {
        case UNIT_CATEGORY_VOLTAGE: return "Voltage";
        case UNIT_CATEGORY_CURRENT: return "Current";
        case UNIT_CATEGORY_PRESSURE: return "Pressure";
        case UNIT_CATEGORY_TEMPERATURE: return "Temperature";
        case UNIT_CATEGORY_POSITION: return "Position";
        case UNIT_CATEGORY_SPEED: return "Speed";
        case UNIT_CATEGORY_TIME: return "Time";
        case UNIT_CATEGORY_FREQUENCY: return "Frequency";
        case UNIT_CATEGORY_STATUS: return "Status";
        default: return "Other";
    }
}

Here is the caller graph for this function:

getTypeName()

const char * getTypeName

(

TelemetryType

type

)

Definition at line 177 of file Telemetry.c.

                                            {
    switch (type) {
        case TELEMETRY_SENSOR: return "SENSOR";
        case TELEMETRY_OUTPUT: return "OUTPUT";
        case TELEMETRY_CAN_TX: return "CAN_TX";
        case TELEMETRY_CAN_RX: return "CAN_RX";
        case TELEMETRY_STATUS: return "STATUS";
        case TELEMETRY_DEBUG: return "DEBUG";
        default: return "UNKNOWN";
    }
}

Here is the caller graph for this function:

handleTelemetryConfigRequest()

void handleTelemetryConfigRequest

(

void

)

Definition at line 130 of file Telemetry.c.

                                        {
    sendMessage("Telemetry", MSG_DEBUG, "Configuration requested by GUI");

    // Send total count first
    sendMessage("TelemetryConfig", MSG_DEBUG, "TotalSignals:%d", num_signals);

    // Send each signal configuration
    for (uint16_t i = 0; i < num_signals; i++) {
        TelemetrySignal* sig = &signals[i];
        const UnitDefinition* unit = getUnitDefinition(sig->unit_id);

        // Send comprehensive configuration
        sendMessage("TelemetryConfig", MSG_CONFIG,
                   "Signal:%s;Unit:%s;Category:%s;Type:%d;Rate:%d;Min:%.2f;Max:%.2f;Decimals:%d;AbsMin:%.2f;AbsMax:%.2f",
                   sig->name,
                   unit->symbol,
                   getCategoryName(unit->category),  // Helper function to get category name
                   unit->data_type,
                   sig->expected_rate_ms,
                   sig->custom_min,
                   sig->custom_max,
                   unit->decimal_places,
                   unit->absolute_min,
                   unit->absolute_max);
    }

    // Send end marker
    sendMessage("TelemetryConfig", MSG_DEBUG, "ConfigComplete:1");
}

Here is the call graph for this function:

Here is the caller graph for this function:

initTelemetry()

void initTelemetry

(

void

)

Definition at line 12 of file Telemetry.c.

                         {
    memset(signals, 0, sizeof(signals));
    num_signals = 0;
    telemetry_initialized = true;

    // Initialize units system
    initUnits();

    sendMessage("Telemetry", MSG_DEBUG, "Telemetry utility initialized");
}

Here is the call graph for this function:

Here is the caller graph for this function:

registerTelemetrySignal()

TelemetrySignal * registerTelemetrySignal	(	const char *	name,
		TelemetryType	type,
		UnitId	unit_id,
		uint32_t	expected_rate_ms,
		float	custom_min,
		float	custom_max
	)

Definition at line 23 of file Telemetry.c.

                                                                            {
    if (!telemetry_initialized || num_signals >= MAX_TELEMETRY_SIGNALS) {
        return NULL;
    }

    TelemetrySignal* sig = &signals[num_signals];
    const UnitDefinition* unit = getUnitDefinition(unit_id);

    strncpy(sig->name, name, sizeof(sig->name) - 1);
    sig->name[sizeof(sig->name) - 1] = '\0';
    sig->type = type;
    sig->unit_id = unit_id;
    sig->expected_rate_ms = expected_rate_ms;
    sig->last_update = HAL_GetTick();
    sig->enabled = true;

    // Use custom limits if provided, otherwise use unit defaults
    if (custom_min != custom_max) {
        sig->custom_min = custom_min;
        sig->custom_max = custom_max;
        sig->use_custom_limits = true;
    } else {
        sig->custom_min = unit->default_warning_min;
        sig->custom_max = unit->default_warning_max;
        sig->use_custom_limits = false;
    }

    num_signals++;

    sendMessage("Telemetry", MSG_DEBUG, "Registered: %s (%s) [%s] - %dms",
               name, unit->symbol, getTypeName(type), expected_rate_ms);
    return sig;
}

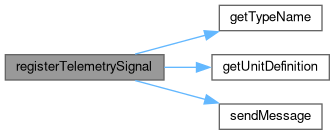

Here is the call graph for this function:

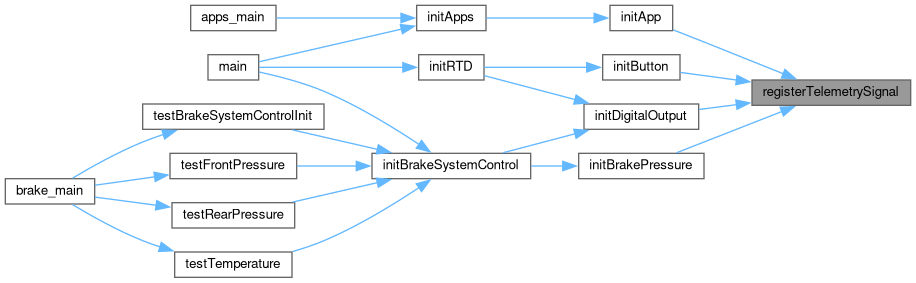

Here is the caller graph for this function:

sendCANTelemetryData()

void sendCANTelemetryData	(	TelemetrySignal *	signal,
		uint32_t	can_id,
		uint8_t *	data,
		uint8_t	dlc
	)

Definition at line 190 of file Telemetry.c.

                                                                                                {
    if (signal == NULL || !signal->enabled ||
        (signal->type != TELEMETRY_CAN_TX && signal->type != TELEMETRY_CAN_RX)) {
        return;
    }

    // Update timestamp
    signal->last_update = HAL_GetTick();

    // Format data as hex string
    char hex_data[17] = {0}; // 8 bytes * 2 chars + null terminator
    for (int i = 0; i < dlc && i < 8; i++) {
        sprintf(&hex_data[i*2], "%02X", data[i]);
    }

    MessageType msg_type = (signal->type == TELEMETRY_CAN_TX) ? MSG_CAN_TX : MSG_CAN_RX;
    sendMessage("CAN", msg_type, "ID:0x%03X;DLC:%d;Data:%s", can_id, dlc, hex_data);
}

Here is the call graph for this function:

sendTelemetryValue()

void sendTelemetryValue	(	TelemetrySignal *	signal,
		float	value
	)

Definition at line 59 of file Telemetry.c.

                                                              {
    if (signal == NULL || !signal->enabled) {
        return;
    }

    const UnitDefinition* unit = getUnitDefinition(signal->unit_id);

    // Update timestamp
    signal->last_update = HAL_GetTick();

    // Handle different telemetry types using the generic sendMessage()
    switch (signal->type) {
        case TELEMETRY_SENSOR:
            // Validate and send sensor data
            if (!validateUnitValue(signal->unit_id, value)) {
                sendMessage(signal->name, MSG_ERROR, "Value exceeds physical limits: %.3f %s",
                           value, unit->symbol);
                return;
            }

            // Check warning limits
            float min_limit = signal->use_custom_limits ? signal->custom_min : unit->default_warning_min;
            float max_limit = signal->use_custom_limits ? signal->custom_max : unit->default_warning_max;

            if (value < min_limit || value > max_limit) {
                sendMessage(signal->name, MSG_WARNING, "Value out of range: %.3f %s (range: %.1f-%.1f)",
                           value, unit->symbol, min_limit, max_limit);
            }

            // Send using generic sendMessage - no special sendSensorValue() needed!
            sendMessage(signal->name, MSG_SENSOR_VALUE, "Value:%.3f;Unit:%s", value, unit->symbol);
            break;

        case TELEMETRY_OUTPUT:
            sendMessage(signal->name, MSG_OUTPUT_VALUE, "Value:%.0f;Unit:%s", value, unit->symbol);
            break;

        case TELEMETRY_STATUS:
            sendMessage(signal->name, MSG_SYSTEM_STATUS, "Value:%.3f;Unit:%s", value, unit->symbol);
            break;

        case TELEMETRY_DEBUG:
            sendMessage(signal->name, MSG_DEBUG, "Value:%.3f;Unit:%s", value, unit->symbol);
            break;

        case TELEMETRY_CAN_TX:
        case TELEMETRY_CAN_RX:
            // CAN data handled separately through sendCANTelemetryData()
            break;
    }
}

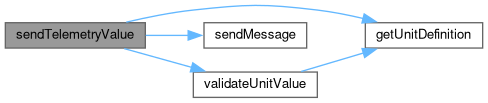

Here is the call graph for this function:

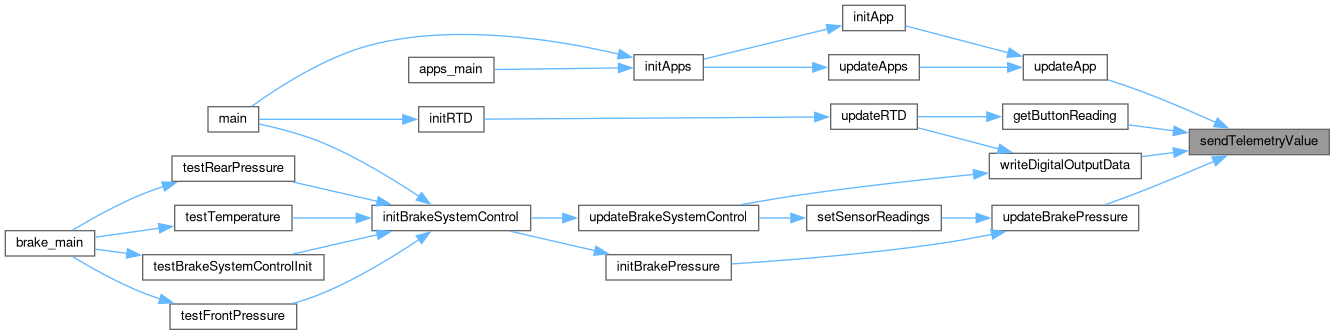

Here is the caller graph for this function:

sendTelemetryValueByName()

void sendTelemetryValueByName	(	const char *	name,
		float	value,
		TelemetryType	type
	)
