ExternalSystem.h File Reference

#include <stdio.h>
#include <stdlib.h>
#include <string.h>
#include "System.h"
#include "CommsSystem.h"
#include "../Scheduler/Task.h"

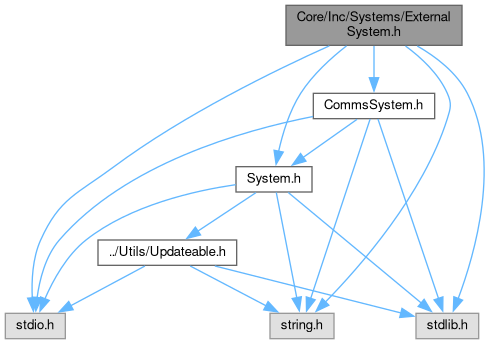

Include dependency graph for ExternalSystem.h:

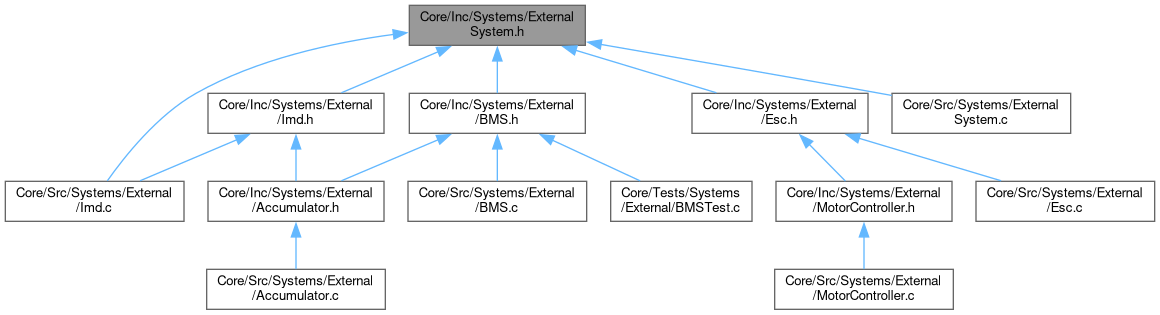

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	ExternalSystem

Typedefs
typedef struct ExternalSystem	ExternalSystem

Enumerations
enum	ExternalType { BMS , e_INVERTER , IMD }

Functions
void	initExternalSystem (ExternalSystem *external, const char *name, int hz, ExternalType type, int(*updateExternal)(ExternalSystem *external), int(*check_heartbeat)(void *self), void *child)
int	e_defaultUpdate (Updateable *updateable)

Typedef Documentation

ExternalSystem

typedef struct ExternalSystem ExternalSystem

Definition at line 19 of file ExternalSystem.h.

Enumeration Type Documentation

ExternalType

enum ExternalType

Enumerator
BMS
e_INVERTER
IMD

Definition at line 12 of file ExternalSystem.h.

             {
    BMS,
    e_INVERTER,
    IMD
} ExternalType;

Function Documentation

e_defaultUpdate()

int e_defaultUpdate

(

Updateable *

updateable

)

Default update function for ExternalSystem objects.

Parameters

task	Pointer to the task to update.

Returns

int _SUCCESS or _FAILURE.

Definition at line 20 of file ExternalSystem.c.

                                            {
    // Cast the child pointer to a external system
    System* system = (System*)updateable->child;
    ExternalSystem* external = (ExternalSystem*)system->child;

    // Perform the heartbeat check
    if (external->check_heartbeat(external) == _FAILURE) {
        return _FAILURE;
    }

    // Perform the external system update
    if (external->updateExternal(external) == _FAILURE) {
        return _FAILURE;
    }

    return _SUCCESS;
}

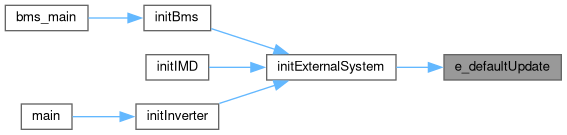

Here is the caller graph for this function:

initExternalSystem()

void initExternalSystem	(	ExternalSystem *	external,
		const char *	name,
		int	hz,
		ExternalType	type,
		int(*)(ExternalSystem *external)	updateExternal,
		int(*)(void *self)	check_heartbeat,
		void *	child
	)

Initializes the External System with initial settings.

Parameters

external	A pointer to the ExternalSystem structure.
name	The name of the external system.
hz	Rate at which the external system is called (in hz).
type	The type of external system (per ExternalType).
updateExternal	The function to update the external system.
check_heartbeat	The function to check the heartbeat of the external system.
child	Pointer to the child struct.

Definition at line 6 of file ExternalSystem.c.

                                                                         {
    initSystem(&external->system, name, hz, EXTERNAL, external);
    external->type = type;
    external->comms = NULL;
    external->check_heartbeat = check_heartbeat;
    external->updateExternal = updateExternal;
    external->child = child;

    // Set the updateable function to generic external system update
    external->system.updateable.update = e_defaultUpdate;
}

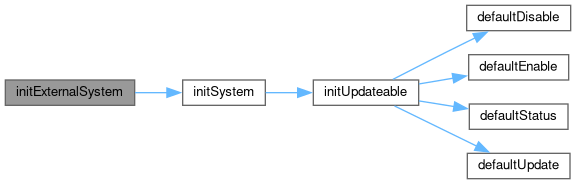

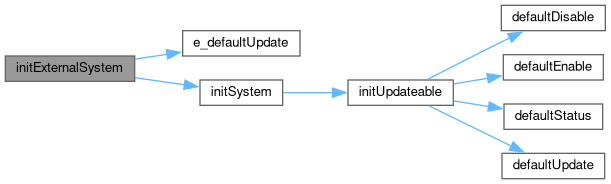

Here is the call graph for this function:

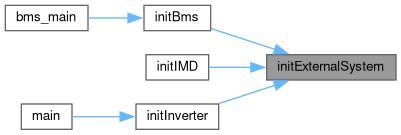

Here is the caller graph for this function:
