Inverter.c File Reference

#include "../../../Inc/Utils/Common.h"
#include "../../../Inc/Systems/External/Inverter.h"
#include <stdio.h>

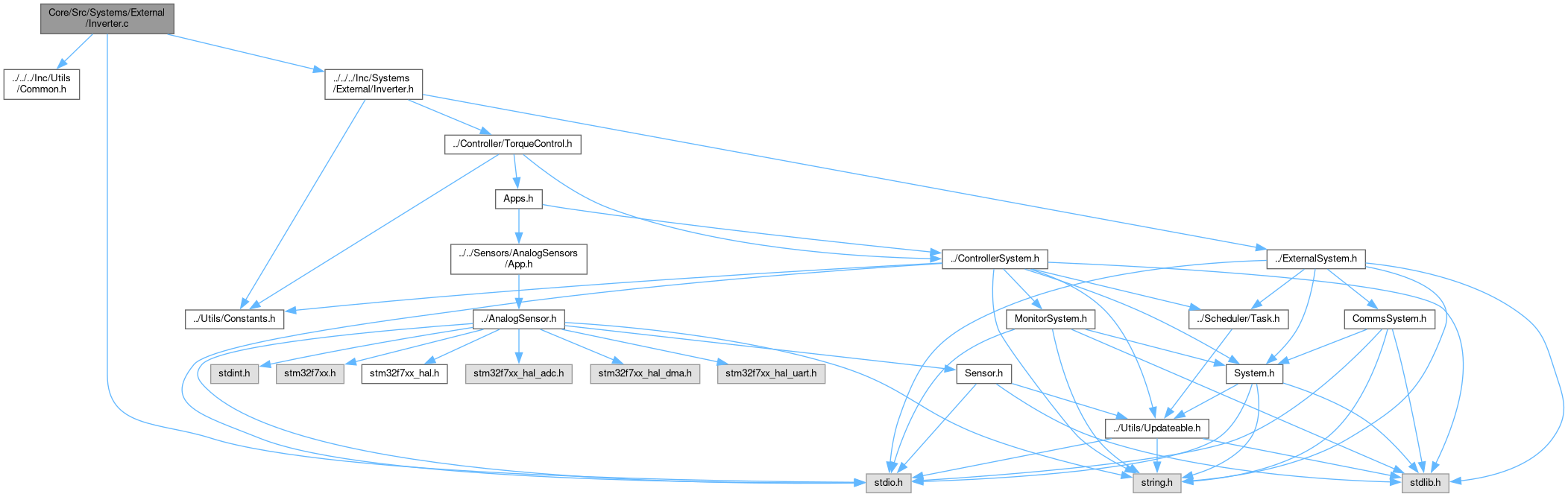

Include dependency graph for Inverter.c:

Go to the source code of this file.

Functions
void	initInverter (Inverter *inverter, TorqueControl *tc, int hz, int maxCurrent, int maxTemp, int maxVoltage)
	Initializes the Inverter with initial settings. More...
int	updateInverter (ExternalSystem *external)
	Updates the Inverter. More...
int	checkInverterHeartbeat (void *self)
	Checks the heartbeat of the Inverter. More...

Function Documentation

checkInverterHeartbeat()

int checkInverterHeartbeat

(

void *

self

)

Checks the heartbeat of the Inverter.

Parameters

self	A pointer to the Inverter structure.

Returns

int _SUCCESS or _FAILURE.

Definition at line 33 of file Inverter.c.

                                       {
    Inverter* inverter = (Inverter*)self;
    // Check if the inverter is still alive
    return _SUCCESS;
}

Here is the caller graph for this function:

initInverter()

void initInverter	(	Inverter *	inverter,
		TorqueControl *	tc,
		int	hz,
		int	maxCurrent,
		int	maxTemp,
		int	maxVoltage
	)

Initializes the Inverter with initial settings.

Parameters

inverter	A pointer to the Inverter structure.
tc	A pointer to the TorqueControl structure.
hz	Rate at which the inverter is called (in hz).
maxCurrent	The maximum current limit set for the inverter.
maxTemp	The maximum temperature limit set for the inverter.
maxVoltage	The maximum voltage limit set for the inverter.

Definition at line 6 of file Inverter.c.

                                                                                                              {
    initExternalSystem(&inverter->base, "Inverter", hz, e_INVERTER, updateInverter, checkInverterHeartbeat, inverter);
    inverter->tc = tc;
    inverter->maxCurrent = maxCurrent;
    inverter->maxTemp = maxTemp;
    inverter->maxVoltage = maxVoltage;
}

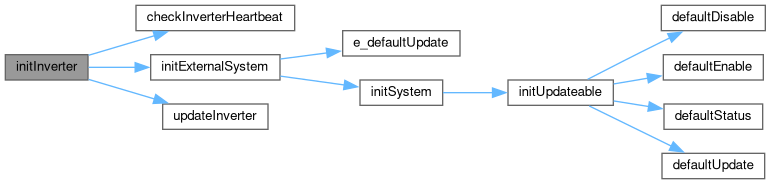

Here is the call graph for this function:

Here is the caller graph for this function:

updateInverter()

int updateInverter

(

ExternalSystem *

external

)

Updates the Inverter.

Parameters

external

A pointer to the Inverter ExternalSystem.

Returns

int _SUCCESS or _FAILURE.

Definition at line 14 of file Inverter.c.

                                             {
    Inverter* inverter = (Inverter*)external->child;
    // Check if torque control is validated
    if (inverter->tc->base.state != c_validated) {
        printf("Inverter: Torque Control Actuator is not validated\r\n");
        return _FAILURE;
    }


    #ifdef DEBUGn
    printf("Inverter updated. Torque: %f, Current: %d, Temp: %d, Voltage: %d\r\n",
           inverter->tc->desiredTorque, inverter->maxCurrent, inverter->maxTemp, inverter->maxVoltage);
    #endif

    dac1_buffer[0] = ((inverter->tc->desiredTorque) / (inverter->tc->maxAllowedTorque)) * 4096.0;

    return _SUCCESS;
}

Here is the caller graph for this function:
